GC旋回破碎机

GC Gyratory Crusher

宣布时间：2018年08月28日浏览次数：20

+ . -

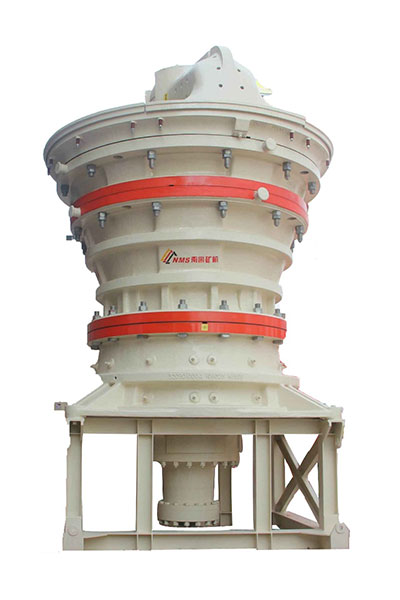

　　GC系列旋回破碎机适用于种种岩石和矿石的初级破碎。相对其它初级破碎装备，具有处置惩罚量大，破碎效率高，破碎比大，产品粒度匀称，低能耗，破碎腔内磨损匀称等特点，适合特大生产规模的条件下使用。

　　产品特点Features

　　1.破碎腔适用于大粒径入料要求，破碎性能最佳。

　　2.具有外置调解齿轮侧隙装置，调解和维护越发利便。

　　3.横梁无需拆卸连忙替换横梁衬套和油封，大宗镌汰装备停车时间，镌汰因维护造成的产量损失。

　　4.接纳平衡式设计，装备在事情运行状态时攻击力小，越发稳固可靠。

　　5.高强度的机架设计，顺应种种卑劣工况情形。

　　6.配有主轴定位系统，可以轻松调理主轴，调解排料口的巨细。

　　7.主轴和动锥接纳一体式结构设计，阻止破碎历程中泛起动锥松动。

　　8.润滑系统，液压系统按�？榛杓�，各自自力运行，通过与主电机连锁，基于PLC控制系统，可实现油温、流量、压力、功率、异常电压电流等监测、纪录和�；�。

点击审查原图

GC series gyratory crusher is used in the primary crushing of various rocks, features as follows: large capacity, higher crushing efficiency,larger reduction ratio, even product size, lower energy design, etc., which is fit for the application of larger capacity.

Features

1.Crushing chamber meets the requirement of the larger feed size with perfect crushing performance.

2.It is more convenient to adjust and maintain with external gear side tolerance adjustment.

3.The cross beam bushing and the seal can be replaced without dismantling cross beam, so as to reduce the shut-down time and production loss caused by maintenance.

4.Adopting the balanced design, the device has small impact force and more stable during operation.

5.With robust frame design, the crusher fits various tough applications.

6.Equipped with mainshaft positioning system, it can easily adjust the mainshaft and CSS。

7.Integrated design of mainshaft and mantle to avoid the loose mantle during the operation.

8.Lubrication system, hydraulic system according to the modular design, operated independently, with the main motor chain, based on PLC control system, which can realize the oil temperature, flow, pressure, power, abnormal voltage current monitoring, recording and protection.
