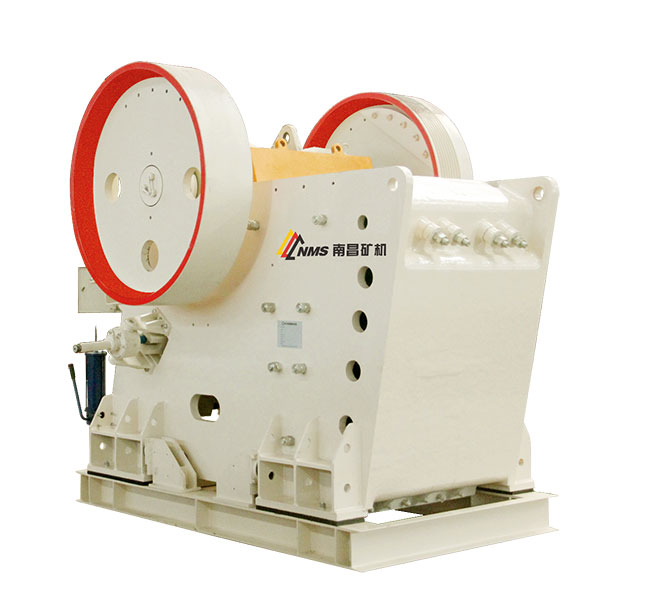

JC颚式破碎机

JC Jaw Crusher

宣布时间：2018年08月28日浏览次数：20

+ . -

　　JC系列颚式破碎机是南昌矿机引进国际先进手艺和研究效果，乐成研发的新一代产品。普遍应用于种种最坚硬和高磨蚀性矿物岩的破碎作业。

　　产品特点Features

　　1.高产量、大破碎比、低磨耗及大进料块度

　　JC颚式破碎机深腔形对称破碎腔设计使得破碎机进料粒度、产量和破碎比实现了最大化。运念头构的设计和破碎机的运行速率相团结，使破碎机获得最大产量和颚板低磨耗。理想的破碎啮角确保物料破碎温顺遂通过，使破碎比抵达最大。

　　2.可靠的重型动颚总成

　　动颚接纳高质量的铸钢制造，通过大型铸铁皮带轮和飞轮发动。铸造的重型偏心轴和接纳SKF或FAG的优质大型调心滚子轴承，使破碎机具有超凡的可靠性。动颚头部配有一可替换的护板，有用�；ざΣ皇芙系墓セ�。

　　3.结实的机体结构

　　机体框架由前端铸钢定颚、两侧轧钢板和后部铸钢调解座组成，所有接纳对接爆缝，改善了钢板的受力情形�；茏楹负缶傩姓逋嘶�，使机架强度高，结实耐用，结构精练。

　　4.对称破碎腔

　　夹角18-22°对称破碎腔设计，定颚与动颚衬板相同，可实现交流。

　　5.楔块排矿口调解系统

　　机械或液压�？榕趴罂诘鹘庀低�，比垫片调解系统更简朴、更清静。

　　6.无地脚螺栓装置方法

　　优异的平衡性能使破碎机无需地脚螺栓装置，通过装置在破碎机支座底部和侧面的橡胶减振块便可实现破碎机正常事情，减缓振动攻击，阻止损坏基础。

　　7.一体化电机装置

　　电机机座与破碎机机架一体装置，镌汰了破碎机的装置空间和三角带的长度使之基础简朴，三角带的使用寿命更长，同时可设置标准的皮带轮清静罩和飞轮清静罩。

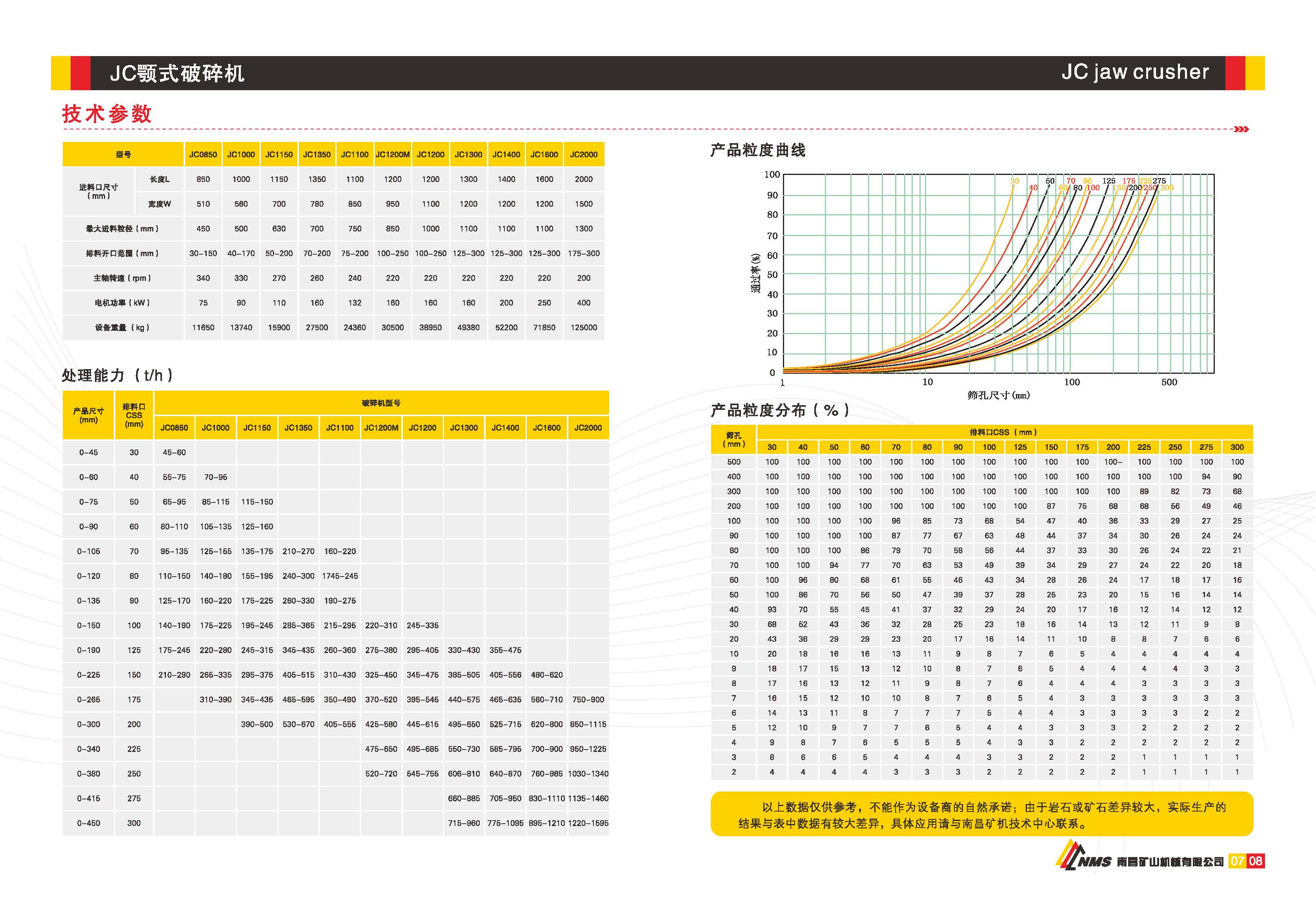

点击审查原图

JC jaw crusher is successfully developed by NMS through introduction of foreign advanced technology and research findings. It is widely used in various hard and abrasive rocks.

Features

1.Higher productivity, higher reduction ratio, larger feeding acceptance and less wearing

Due to the optimal design of the deep V symmetric crushing chamber, and the design of motion structure combined with the crusher speed, the crusher obtains the max.feeding size, productivity, reduction ratio and less wearing, the excellent nip angle makes the smooth rock crushing with the reduction ratio up to maximum.

2.Reliable & durable heavy-duty pitman assemble

The pitman is made of high quality cast steel, driven by the heavy-duty cast iron belt wheel and flying wheel. The heavy duty forging eccentric flying wheel shaft and SKF or FAG bearing make the crusher extraordinarily reliable. The pitman is equipped with one interchangeable protection plate, efficiently protect the pitman from the shock of the feeding material.

3.Robust frame

Robust frame is welded by the front cast steel fixed jaw, side rolling steel plates, and rear cast steel adjustment units. We improve the welding and the steel force as well, with end welding to avoid plate layer failure. After welding, the frame unit will be given one whole annealing, so that the frame is stronger, durable, reliable, and simpler.

4.Deep symmetric crushing chamber

With nip angle of 18-22°，the fixed jaw and the pitman liner is the same and can be interchangeable.

5.CSS wedge adjustment system

Mechanical or hydraulic wedge CSS adjustment system is simpler and safer than the spacer adjustment.

6.No anchor bolt foundations

No anchor bolt foundations is possible due to the good balance of the crusher. The crusher can operate by the cushion between rubber dampers and stoppers to efficiently absorb crushing load, avoid the damage to the crusher foundation.

7.An integral motor base

An integral motor base is mounted on the crusher frame to prolong V-belt life and save the mounting space, the foundation can be more simple, while the standard belt wheel and the flywheel cover can be used.
