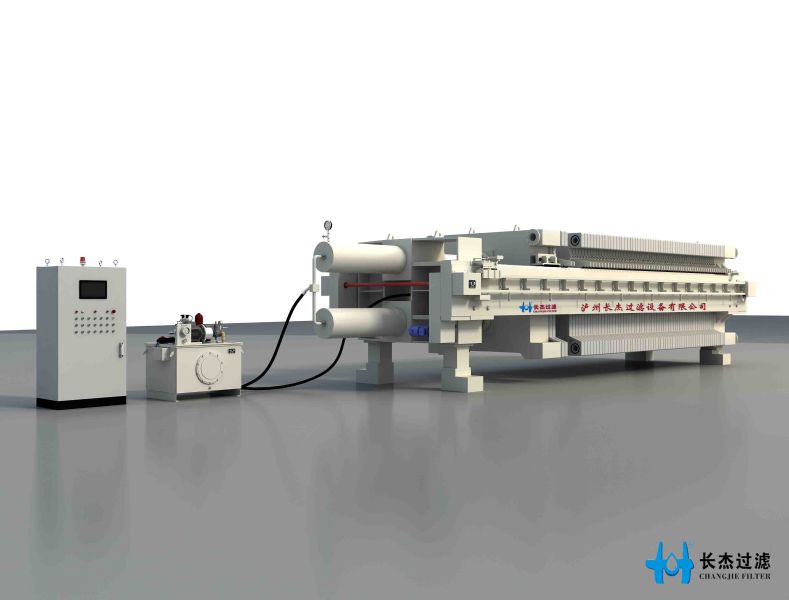

CJXZ高能智能压滤机是具有给料过滤、无隔膜压榨过滤、吹干过滤三段段脱水流程的新型智能过滤装备，在长杰CJXA高能自动系列压滤机基础上，升级拥有智能控制系统 �？墒迪肿远骼硌拐ナ奔�，无需人工加入，并且按期纪录产能等功效，镌汰人工加入，降低企业运行本钱 。
CJXZ high performance intelligent filter press is a upgrade type of filtration equipment from CJXA with intelligent system, also with three-stage dewatering processes: feeding, diaphragmless pressing and dry-blowing. CJXZ can automatically adjust the pressing time and record the capacity and other parameters, reducing operating cost of the enterprise and manual participation.
1、给料过滤即依赖渣浆泵的运送压力，使进入滤室的矿渣被滤布截留，形成滤饼；水透过滤布扫除，实现固液疏散；
2、压榨过滤是在给料过滤形成的松散滤饼一侧施加压力，缩短其逍遥，扫除逍遥中的水；
3、吹干过滤是接纳介质高速穿过滤饼间歇，带走间歇水，进一步降低滤饼含水率 。无论接纳多大的压滤压榨滤饼，滤饼的间隙也不可完全消除，因此，增添吹干过滤，用高压空气分钟透过滤饼间隙并带走滤饼间隙中的水分，是降低滤饼含水率的主要手段 。然而有用的避免吹干时压缩空气短路，却是能否实现有用吹干的要害，这是CJXA系列高能自动压滤机的奇异设计，也是其他压滤机不可有用吹干的要害 。 （箱式和箱式隔膜压滤机接纳中心孔进料方法，空气吹干短路，无法有用吹干）
1. The feed filtration is based on the delivery pressure of the slurry pump, so that the slag entering the filter chamber is trapped by the filter cloth to form a filter cake; the water is filtered through the filter cloth to achieve solid-liquid separation;
2. Press filtration is to press on the side of the porous filter cake formed by the feed filtration, shrinking the voids and eliminating the water in the voids;
3. Dry-blowing filtration uses high-speed compressed air to pass through the cake and remove intermittent water, further reducing the moisture content of the cake. Regardless of how much pressure is used to press the filter cake, the gap between the material particles cannot be completely eliminated. Therefore,the dry-blowing filtration , using high-pressure air to pass through the cake and remove moisture from the particles gap , is the important means to reduce the moisture content of the filter cake. However, effective prevention of short-circuit of compressed air during drying is the key to effective drying. Dry-blowing filtration is the unique design of the CJAH Series high-efficiency filter press. Other filters press cannot achieve filter cake to be blown dry effectively without dry-blowing filtration technology.(The box and box diaphragm filter press adopt the center hole feeding method, which will cause air short-circuited and cannot be blown dry.)
1、深度过滤系统：标配专利滤板，实现三段有用、完整、品质过滤；
2、成熟作业系统：设置通俗液压系统，实现稳固压紧、单块拉开作业 。
1. Deep filtration system: standard patented filter plate to achieve effective, complete and quality filtration of three stages;
2. Mature operating system: equipped with ordinary hydration system to realize stable compression and single-block pulling operation.
1、刚性机架系统：四点支持刚性机架，为装备高效智能运行提供包管；
2、再生滤布系统：标配专利滤布，实现滤布无水再生，延伸滤布使用寿命；
3、稳固卸料系统：滤板单块拉开摆下手艺，实现了快速、完整的卸料；
4、智能控制系统：实现给料、压榨风干时间的智能调解，坚持产品的均一质量 。
1. Rifid rack system: multi-point support rigid frame to provide guarantee for efficient and stable operation of equipment;
2. Regenerative filter cloth system: Standard patented filter cloth to achieve waterless regeneration of filter cloth and extend the service life of filter cloth;
3. Stable unloading system: filter plate single-block pulling swing technology to realizes fast and complete unloading;
4. Intelligent control system: adjusting feeding, pressing and drying time intelligently to maintain the uniform quality of the product.
1、滤布诊断系统：实现滤布破损快速诊断，实时替换滤布，阻止物料泄露；
2、装备外貌外包：可选用多种耐侵蚀材质包覆装备外貌 。
1. Filter cloth diagnostic system: realize rapid diagnosis of filter cloth breakage, replace filter cloth in time to avoid material leakage;
2. Outsourcing of equipment surface: The surface of the equipment can be covered with a variety of corrosion-resistant materials.
1、高性能：过滤铁精矿可实现滤饼含水率<6%，相同物料及过滤条件下，比箱式、箱式隔膜、板框压滤机滤饼含水率低5-8个百分点；
2、高产能：单台最大处置惩罚能力更大，一律过滤面积的产能远大于箱式隔膜压滤机；
3、高智能：智能自主调解给料时间、压榨时间、过滤压力等过滤参数、自主适时纪录滤饼重量、含水率、气压、电压、电流、电机转速、液压压力、事情温度等主要参数，自动滤布再生，自主检测故障；
4、高顺应性：装备在凌驾5000米海拔、差别浓度、差别磨细粒度的条件下均有应用，含水率实现行业最低 。
1. High performance: Filtered iron concentrate cake can achieve moisture content <6%, Under the same material and filter conditions, the filter cake moisture content can be 5-8 % lower than that of box filter press, box diaphragm filter press and frame filter press;
2. High capacity: single daily processing capacity is larger, the production capacity of same filter area is much larger than that of the box diaphragm filter;
3. High intelligence: Intelligently adjust the filtering parameters such as feed time, press time, filtration pressure, etc.; Automatically record important parameters such as cake weight, moisture content, air pressure, voltage, current, motor speed, hydraulic pressure, working temperature, etc.; automatic filter cloth regeneration; automatic detection of faults; unattended;
4. High adaptability: The equipment has been applied under different conditions of over 5,000m altitude, different material concentrations and different grinding granularity, and the moisture content of filter cake can achieve the lowest in the industry.
1、装备适用于矿山、冶炼、化工、食物、制药及环保等领域；
2、在相对较难过滤、物料成饼难题的物料过滤时选择使用，可使性能优势最大化，实现更低含水率，提高客户过滤品质；
3、事情情形温度5-90℃，建议使用浓度（质量比）≥20% 。
1.The equipment is suitable for mining, metallurgy, chemistry, food, pharmaceutical industry and environmental protection fields;
2.When used in materials which is relatively difficult to filter and form cakes, maximize performance benefits, achieve lower moisture content, and improve customer filtration quality;
3. Operating environment temperature is 5-90℃, the recommended concentration (mass ratio) is ≥ 20%.
1、云南某大型磷化工企业
1. A large phosphorus chemical company in Yunnan
过滤物料：磷酸氢钙
Filter material: Calcium hydrogen phosphate
物料细度：-200目80%
Material fineness: -200 mesh, 80%
给料浓度：6-15%
Feeding concentration: 6-15%
滤饼含水率：≤20%
Moisture content: ≤20%
装备数目：9
Quantity: 9
单台面积：648平米
Filtration area per set: 648 ㎡
单台产能：432t/d
Daily capacity per set: 432t/d
该厂原接纳大宗的离心机过滤低浓度磷酸氢钙，水分高，单台产能极低，维护事情量大，且保存较大的清静隐患 。后技改接纳CJ系列压滤机取代吊栏离心机清静板离心机，实现低浓度、细粒级磷酸氢钙的一次性有用过滤接纳，滤饼含水率≤20%，单台日产能432吨（即是13台PGZ1250离心机产能） 。
The Plant adopts massive centrifuges to filter low-concentrate calcium hydrophosphate, with high water content, extremely low production capacity of each single set, massive maintenance and great safety hidden trouble. In the technical reform, the CJ series press filter replaced the suspending basket centrifuge and flat board centrifuge to efficiently filter and recycle the calcium hydrophosphate, with the filter cake moisture content of ≤20% and production capacity of each single set being equal to that of 13 sets of PGZ1250 centrifuges.
2、云南某大型磷化工企业
2. A large phosphorus chemical company in Yunnan
过滤物料：白肥
Filter material: Calcium hydrogen phosphate
给料浓度：15-20%
Feeding concentration: 15-20%
滤饼含水率：27-28%
Moisture content: 27-28%
装备数目：2
Quantity: 2
单台面积：648平方
Filtration area per set: 648 ㎡
单台产能：336t/d
Daily capacity per set: 336t/d
该厂原接纳大宗的离心机举行白肥的过滤，水分高，单台产能低，维护事情量大，且保存较大的清静隐患 。技改接纳CJ系列压滤机，滤饼含水率<28%，单台日产能336吨，消除了清静隐患，工人劳动强度也大幅降低 。
The Plant adopts massive centrifuges to filter low-concentrate calcium hydrophosphate, with high water content, extremely low production capacity of each single set, massive maintenance and great safety hidden trouble. In the technical reform, the CJ series press filter was used to filter the calcium hydrophosphate, with the filter cake moisture content of <28% , production capacity of each single set of 336 tons, eliminating hidden trouble and reducing labor.
3、甘肃某大型集团股份有限公司
3. A Copper Nickel Company In Gansu Province
过滤物料：铜镍精矿
Filter material: Copper and nickel concentrate
物料细度：-400目98%
Material fineness: -400 mesh, 98%
给料浓度：45-55%
Feeding concentration: 45-55%
滤饼含水率：11%
Moisture content: 11%
装备数目：9
Quantity: 9
过滤面积：622平米
Filtration area per set: 622 ㎡
单台产能：800t/d
Daily capacity per set: 800t/d
该厂原接纳两种装备处置惩罚铜精矿，原接纳国际著名立式压滤机9台及陶瓷过滤机2台，但立式压滤机故障率高，运维本钱高达1200万/年；陶瓷过滤机含水率>15%,无法知足后续工艺要求 。后技改陆续采购CJ系列压滤机，滤饼含水率9%，单台日产能抵达800吨，运营维护本钱大幅降低 。
The Plant adopts two kinds of equipment to process copper concentrate, 9 sets of vertical press filter and 2 sets of ceramics filter, but fault rate of the vertical press filter is very high and the operation and maintenance cost is up to 12 million USD/year, the ceramics filter water content is>15%, which cannot meet the subsequent process requirements. In the technical reform, the CJ series press filter is purchased, with water content of 9%, daily production capacity of single set up to 800 tons and operation and maintenance costs much lowered.
